WALLER TC 670 TRAILER CATAMARAN

Designed by Mike Waller

Our most popular catamaran design, the WALLER TC 670 was designed as an easy to build and sail multi-hull yacht, which could also be trailed by the average family car without the need for demounting or expensive collapsable trailers. Designed primarily for 2 people, the TC 670 is ideal for a couple, or a family with young children

DIMENSIONS

L.O.A.                              6.70 Mtrs

Beam                               2.40 Mtrs

Draft (board up)               0.29 Mtrs

Draft (boards down)        0.90 Mtrs

Displacement                    1072 Kg

Weight (on trailer)               770 Kg

Hull Beam/LWL Ratio                1:9

Sail Area                 23.00 Squ Mtrs

Payload                               600 Kg

Note# All displacement and payload weights above are as per designed plan, and cannot be guaranteed.


CONCEPT

The small cabin features a double berth, a good sized and easy to use galley, and a small table around which 3 can sit in comfort. There is also a chemical toilet beneath the foot of the double berth, and 2 children could bunk down in the cockpit under a boom tent. At anchor, the tent will turn the cockpit into a huge covered living area.It is also quite possible to add quarter berths in each hull under the cockpit seats for children.

The multi chine hull (flat bottom with 2 chines) is constructed from sheet ply over plywood, with minimal timber framing. Construction employs the timber / epoxy building technique, is very strong to stand up to the rigors of trailing, and is simple and straightforward with the entire shell built as a single unit. When turned over, very little is required to complete the vessel.

This yacht features a single centre board and rudder placed on the center line. On small, narrower cats, this configuration has proven to be most effective and efficient, and the lack of board cases in the hulls makes construction that much easier and quicker

The rig is a simple 7/8 design, with simple spars and utilizing off the shelf fittings. The rig can be home built if desired.

Particular care has been taken to ensure that this boat is both a safe and reliable performer, with an efficient sail plan and low profile for windward performance. Note that its intended use is sheltered and semi sheltered waters, and not open water.

All sails can be reefed in a blow, and the yacht features removeable 'hobbie' style out-rider seats for sailing in stronger winds.For normal sailing these are unnecessary. The rig features an assymetrical spinnaker set from a bow pole, but a normal symetrical spinnaker could be used if desired

BUY YOUR PLANS HERE

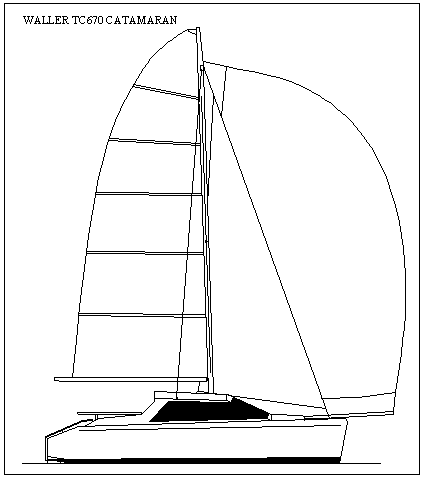

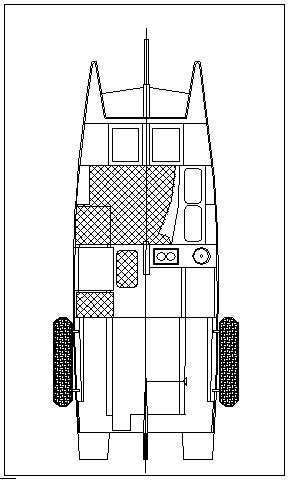

tc670 (1).gif
Study Plans  $25.00
Full Plans  $275.00
 Click on any photo for larger image and information
