DBS 26 SHARPIE CK

Designed by Mike Waller

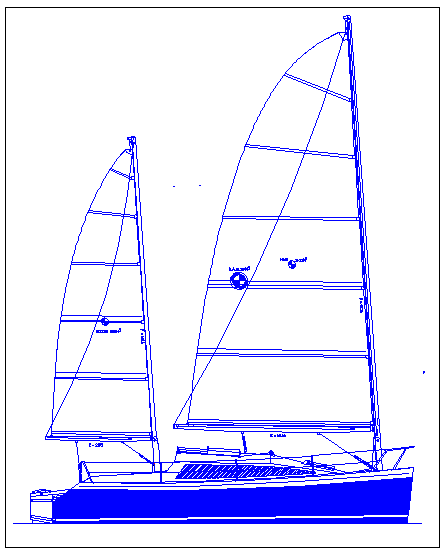

The Deception Bay Sharpie 26 CK (Cat Ketch) is a traditional Sharpie design with a more modern profile, designed for those who love the low cost, simple construction and high performance of the sharpie concept, but prefer styling a bit more up to date than the highly traditional appearance of most current Sharpies on the market today.

DIMENSIONS

L.O.A.                                          7.80 Mtrs

L.W.L.                                          7.65 Mtrs

Beam                                           2.44 Mtrs

Draft (boards up)                           .30 Mtrs

Draft (boards down)                    1.41 Mtrs

Displacement                                2100 Kg

Weight (on trailer)                         1800 Kg

Sail Area                            24.22 Squ Mtrs

Ballast Weight                                 674 Kg

Note# All displacement and payload weights above are as per designed plan, and cannot be guaranteed.

The vessel provides basic accommodation for day and weekend / short term sailing for two, or a small family, and should not be regarded as a long term or distance cruiser. She is basically designed for use in sheltered and semi sheltered waters. Sharpies are however, extremely stable boats, and in skilled hands are capable of much more extensive voyages in open water and coastal sailing. A high ballast ratio and exceptional form stability makes them extremely seaworthy boats.

The vessel is designed for timber/plywood/epoxy construction. Construction is entirely in marine grade plywood with minimal timber framing, and most internal structural support is provided by ply bulkheads and joinery. The sharpie hull form, with flat bottom and flat, sloping hull sides, is admirably suited for this construction method, making it quick, easy and inexpensive to construct.

The Deception Bay Sharpie 26 CK (Cat Ketch) differs from other sharpies mainly in her more modern appearance, and in the fact that she has tandem centerboards. Twin boards have many advantages over a single large board, the chief of which are that two smaller boards interfere less with the accomodations, and allow the boat to be perfectly balanced on any point of sail or weather conditions, a great benefit for short handed sailing. Each board being smaller, the additional cost and time constructing two boards is not much greater than one large board, and the benefits outweigh this by far.

BUY YOUR PLANS HERE
Study Plans  $25.00
Full Plans  $370.00
We do not yet have any photos of this vessel from builders
