CORAL SEA 25 CATAMARAN

Designed by Mike Waller

The CORAL SEA 25 CATAMARAN is designed specifically for the builder who wants the maximum boat for minimum cost and building time. To this end the vessel features seperate hulls connected by strongly mounted cross beams.

DIMENSIONS

L.O.A.                                    7.79 Mtrs

L.W.L.                                     6.60 Mtrs

Beam                                     4.80 Mtrs

Draft                                        .53 Mtrs

Displacement                         1140 Kg

Weight (Trailer weight)            900 Kg

Hull Beam / LWL Ratio                   9:1

Sail Area                      37.72 Squ Mtrs

Payload (Maximum)                 500 Kg

Note# All displacement and payload weights above are as per designed plan, and cannot be guaranteed.

cs25 (1) - Copy.jpg

The CORAL SEA 25 CATAMARAN  is demountable for trailing and employs a simple, easily built, trunkated 'V' hull shape. The trunkated 'V', is as simple to build as the straight 'V', but has better sailing characteristics, such as less wetted surface, better tacking etc. This yacht is definitely a case of the most boat for the least work and cost.

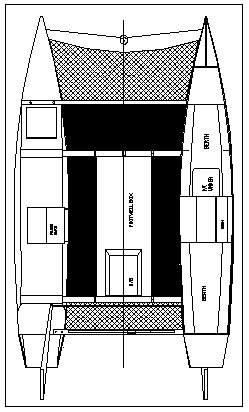

The Coral Sea 25 is designed for safe, comfortable family sailing, with bunks for 4 in 2 seperate hulls. It also has a room for a portable toilet, small cabin lockers,  and a huge cockpit for socializing. There is good sitting headroom in the hulls.

For simplicity and ease of construction the hulls consist of a plywood shell wrapped around a framework of plywood bulkheads and timber stringers. This is still the easiest way to construct a timber boat, and when combined with timber / epoxy construction, is a very cost effective way to build a sound vessel.

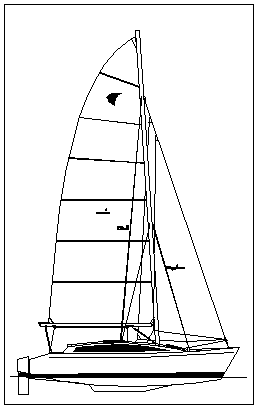

The rig is a simple but efficient ¾ sloop, with a large sail area for light weather cruising, easily reefed in heavier winds. The rigidly mounted beams allow the vessel to carry an efficent rig which can stand up to the weather. The rigging is as simple as possible, and is based on the KISS principle. Two separate rigs are available, a standard rig for offshore and open water sailing, and a larger inshore rig. The choice is at the builders discretion.

Auxiliary power is from an outboard in a separate pod beneath the cockpit footwell. The vessel features small skeg keels  for cruising simplicity, and efficient transom hung rudders for positive helm control. Steering as designed is by tiller. The Coral Sea 25 is an easily constructed vessel capable of providing it's owners with years of comfortable and fun cruising, or even ocean voyages for the more skillful and adventurous sailors

BUY YOUR PLANS HERE
Study Plans  $25.00
Full Plans  $440.00
